Surface mount supervisory circuit with a 2.63V threshold voltage, monitoring a single voltage. Features active low, push-pull output and a 140ms reset timeout. Operates from 1V to 5.5V with a low quiescent current of 9µA. Packaged in a 3-pin SC-70 with dimensions of 2.25mm x 1.35mm x 1mm, supplied on tape and reel.
PackageSC
Current9uA
MountingSurface Mount
Power174mW
Quick Jump:
Technical Specifications
Microchip TCM809RVLB713 technical specifications.
General
Package/Case
SC
Height
1mm
Lead Pitch
1.3mm
Length
2.25mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Power Dissipation
174mW
Max Reset Threshold Voltage
2.66V
Min Reset Threshold Voltage
2.59V
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
9uA
Output
TOTEM-POLE
Overvoltage Threshold
2.66V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
174mW
Quiescent Current
12uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Row Spacing
2.4mm
Supply Current
9uA
Termination
SMD/SMT
Threshold Voltage
2.63V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.59V
Watchdog Timer
No
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip TCM809RVLB713 Datasheet
Download the complete datasheet for Microchip TCM809RVLB713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

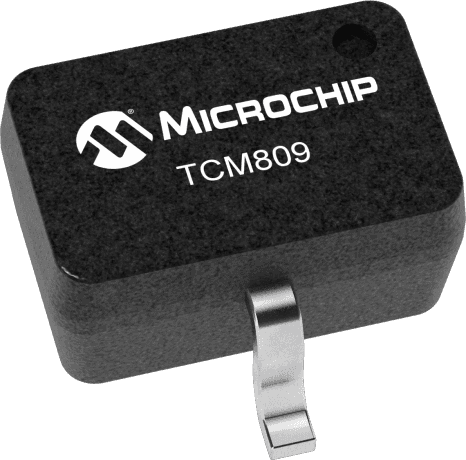

Product Images
