PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TCN75-5.0MOA technical specifications.
General
Package/Case
SOIC
Height
1.42mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
9
Operating Supply Current
1mA
Output Current
6mA
Output Type
Digital, I2C
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Microchip TCN75-5.0MOA Datasheet
Download the complete datasheet for Microchip TCN75-5.0MOA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

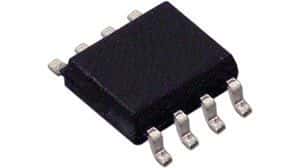

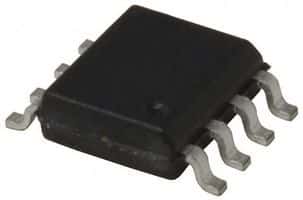

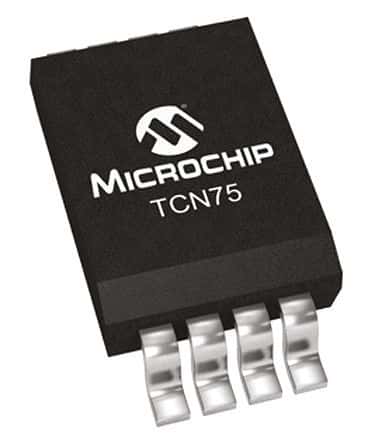

Product Images
