N-CHANNEL JFET, Surface Mount, SOT-23 package. Features 300V drain-to-source breakdown voltage and 85mA continuous drain current. Offers 25 Ohms drain-to-source resistance, 7ns fall time, 10ns turn-on delay, and 12ns turn-off delay. Operates from -55°C to 150°C with 360mW power dissipation.
PackageSOT-23
MountingSurface Mount
PolarityN-CHANNEL
Power360mW
Quick Jump:
Technical Specifications
Microchip TN2130K1-G technical specifications.
General
Package/Case
SOT-23
Continuous Drain Current (ID)
85mA
Drain to Source Breakdown Voltage
300V
Drain to Source Resistance
25R
Fall Time
7ns
Gate to Source Voltage (Vgs)
20V
Height
0.95mm
Input Capacitance
50pF
Lead Free
Lead Free
Length
2.9mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
360mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Package Quantity
3000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
360mW
Radiation Hardening
No
Rds On Max
25R
Turn-Off Delay Time
12ns
Turn-On Delay Time
10ns
Weight
0.050717oz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Microchip TN2130K1-G Datasheet
Download the complete datasheet for Microchip TN2130K1-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

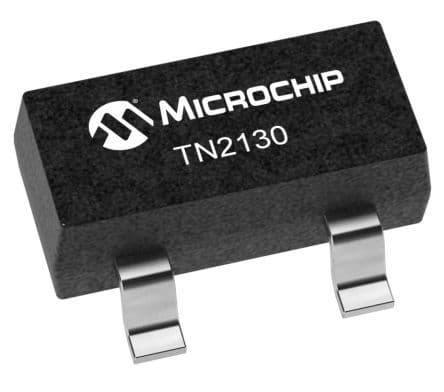

Product Images
