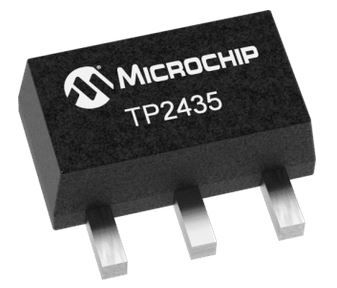

The TP2435N8-G is a P-channel MOSFET with a maximum operating temperature range of -55°C to 150°C. It features a drain to source breakdown voltage of -350V and a continuous drain current of -231mA. The device is packaged in a SOT-89-3 package and is suitable for surface mount applications. The TP2435N8-G has a maximum power dissipation of 1.6W and a fall time of 20ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TP2435N8-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-89-3 |
| Continuous Drain Current (ID) | -231mA |
| Drain to Source Breakdown Voltage | -350V |
| Drain to Source Resistance | 15R |
| Fall Time | 20ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.6mm |
| Length | 4.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.6W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 1.6W |
| Turn-Off Delay Time | 25ns |
| Turn-On Delay Time | 15ns |
| Weight | 0.001862oz |
| Width | 2.6mm |
| RoHS | Compliant |
