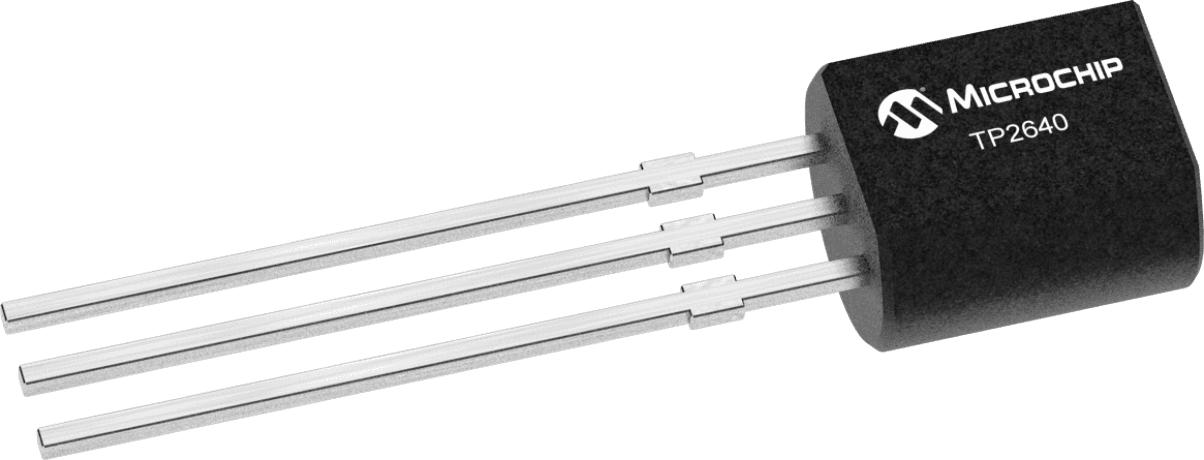

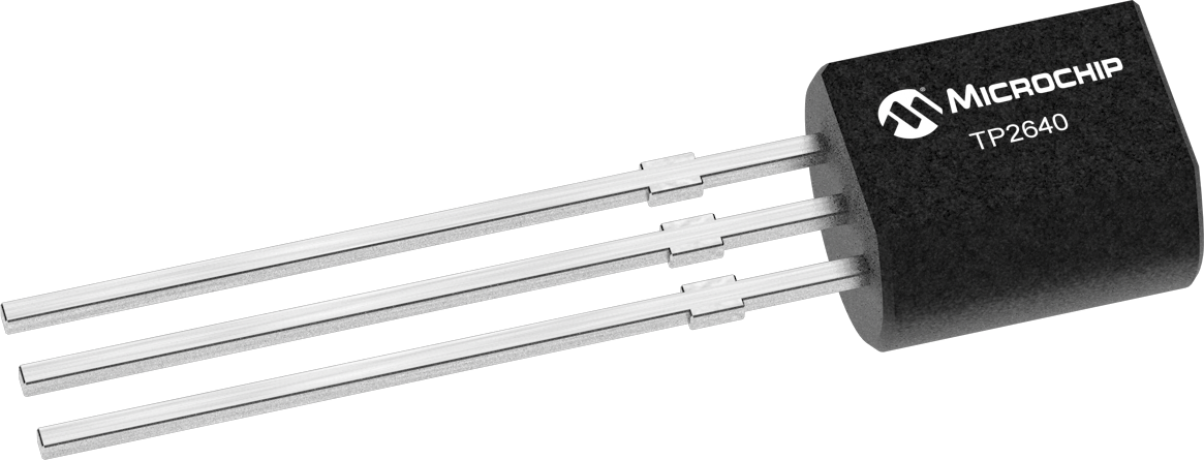

P-channel Junction Field-Effect Transistor (JFET) designed for small signal applications. Features a 400V drain-to-source breakdown voltage and 180mA continuous drain current. Offers a low drain-to-source resistance of 15 Ohms and a maximum power dissipation of 1W. Packaged in a TO-92-3 through-hole mount configuration, operating across a temperature range of -55°C to 150°C. Includes fast switching characteristics with turn-on delay time of 10ns and fall time of 40ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip TP2640N3-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-92-3 |
| Continuous Drain Current (ID) | 180mA |
| Drain to Source Breakdown Voltage | -400V |
| Drain to Source Resistance | 15R |
| Drain to Source Voltage (Vdss) | 400V |
| Fall Time | 40ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 5.33mm |
| Input Capacitance | 300pF |
| Length | 5.21mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Polarity | P-CHANNEL |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| Rds On Max | 15R |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 10ns |
| Weight | 0.00776oz |
| Width | 4.19mm |
| RoHS | Compliant |
