Multi-format flash media controller supporting Full Speed and High Speed SD/MMC and MS card formats. Features a USB 2.0 interface with a 35Mbps data rate. Operates at 3.3V with a supply voltage range of 3V to 3.6V. Surface mountable in a 36-pin QFN package (6.15mm x 6.15mm x 0.95mm). Includes serial and I2C interfaces.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip USB2244-AEZG-06 technical specifications.
General
Package/Case
QFN
Data Rate
35Mbps
Height
0.95mm
Interface
Serial, I2C
Lead Free
Lead Free
Length
6.15mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Transceivers
1
Operating Supply Current
135mA
Operating Supply Voltage
3.3V
Package Quantity
490
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.15mm
Compliance
RoHS
Compliant
Datasheet
Microchip USB2244-AEZG-06 Datasheet
Download the complete datasheet for Microchip USB2244-AEZG-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

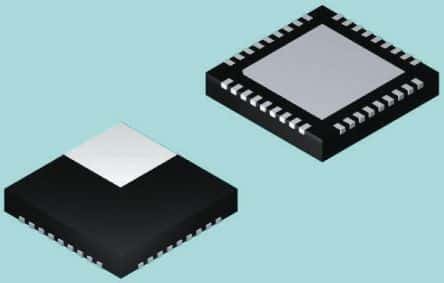

Product Images
