PackageTO-92
MountingThrough Hole
PolarityN-CHANNEL
Power1W
Quick Jump:
Technical Specifications
Microchip VN0808L-G technical specifications.
General
Package/Case
TO-92
Continuous Drain Current (ID)
300mA
Drain to Source Breakdown Voltage
80V
Drain to Source Resistance
4R
Gate to Source Voltage (Vgs)
30V
Height
5.33mm
Input Capacitance
50pF
Length
5.21mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Package Quantity
1000
Packaging
Bulk
Polarity
N-CHANNEL
Power Dissipation
1W
Radiation Hardening
No
Rds On Max
4R
RoHS Compliant
Yes
Weight
0.016oz
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Microchip VN0808L-G Datasheet
Download the complete datasheet for Microchip VN0808L-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

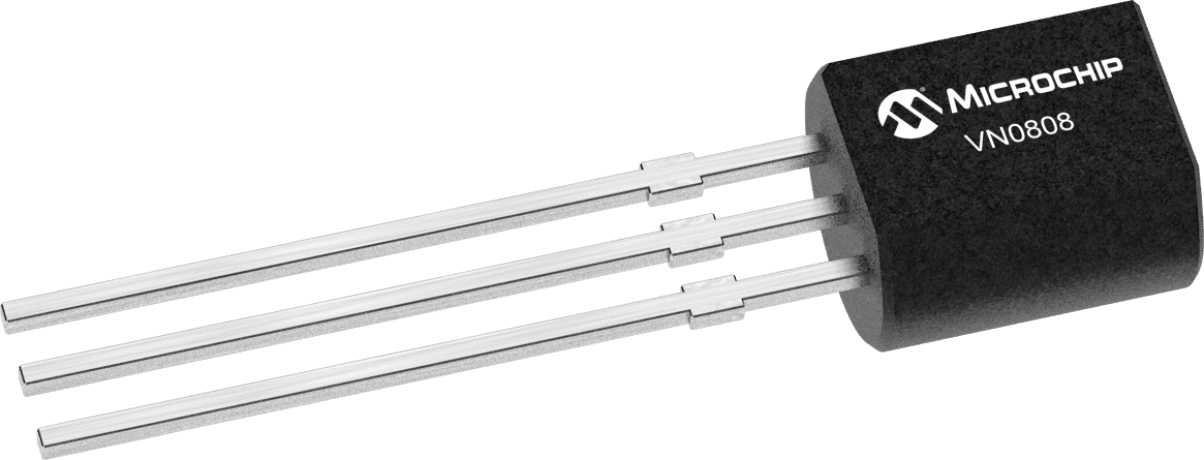

Product Images
