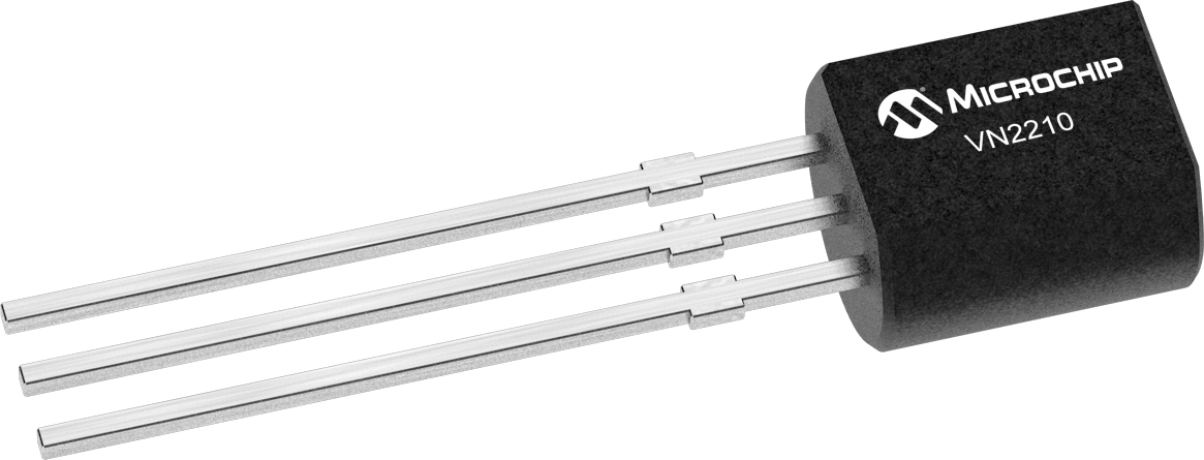

N-channel small signal MOSFET in a TO-92-3 package, designed for through-hole mounting. Features a 100V drain-to-source breakdown voltage and a continuous drain current of 1.2A. Offers a low drain-to-source resistance of 4R and a maximum power dissipation of 1W. Operates across a wide temperature range from -55°C to 150°C. Includes fast switching characteristics with a 10ns turn-on delay and 30ns fall time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip VN2210N3-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-92-3 |
| Continuous Drain Current (ID) | 1.2A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 4R |
| Fall Time | 30ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 5.33mm |
| Input Capacitance | 500pF |
| Length | 5.21mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 740mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Polarity | N-CHANNEL |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| Rds On Max | 350mR |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 50ns |
| Turn-On Delay Time | 10ns |
| Weight | 0.016oz |
| Width | 4.19mm |
| RoHS | Compliant |
