N-channel small signal MOSFET in a TO-92 package, featuring 240V drain-to-source breakdown voltage and 190mA continuous drain current. Offers 10Ω drain-to-source resistance (Rds On Max) and 1W maximum power dissipation. Operates across a wide temperature range from -55°C to 150°C, with fast switching characteristics including an 8ns turn-on delay and 23ns turn-off delay. Designed for through-hole mounting with a 125pF input capacitance.
PackageTO-92-3
Voltage240V
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Microchip VN2410L-G technical specifications.
General
Package/Case
TO-92-3
Continuous Drain Current (ID)
190mA
Drain to Source Breakdown Voltage
240V
Drain to Source Resistance
10R
Fall Time
24ns
Gate to Source Voltage (Vgs)
20V
Height
5.33mm
Input Capacitance
125pF
Length
5.21mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Through Hole
Number of Channels
1
Package Quantity
1000
Packaging
Bulk
Polarity
N-CHANNEL
Power Dissipation
1W
Rds On Max
10R
Turn-Off Delay Time
23ns
Turn-On Delay Time
8ns
Voltage
240V
Weight
0.016oz
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Microchip VN2410L-G Datasheet
Download the complete datasheet for Microchip VN2410L-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

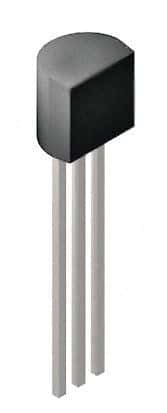

Product Images
