N-channel power MOSFET for surface mount applications. Features 50V drain-to-source breakdown voltage and 1.5A continuous drain current. Offers a low 300mΩ drain-to-source resistance. Operates across a wide temperature range from -55°C to 150°C with a maximum power dissipation of 1.6W. Packaged in SOT-89-3, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSOT-89-3
MountingSurface Mount
PolarityN-CHANNEL
Power1.6W
Quick Jump:
Technical Specifications
Microchip VN3205N8-G technical specifications.
General
Package/Case
SOT-89-3
Continuous Drain Current (ID)
1.5A
Drain to Source Breakdown Voltage
50V
Drain to Source Resistance
300mR
Fall Time
15ns
Gate to Source Voltage (Vgs)
20V
Height
1.6mm
Lead Free
Lead Free
Length
4.6mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Package Quantity
2000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
1.6W
RoHS Compliant
Yes
Turn-Off Delay Time
25ns
Turn-On Delay Time
10ns
Weight
0.001862oz
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip VN3205N8-G Datasheet
Download the complete datasheet for Microchip VN3205N8-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

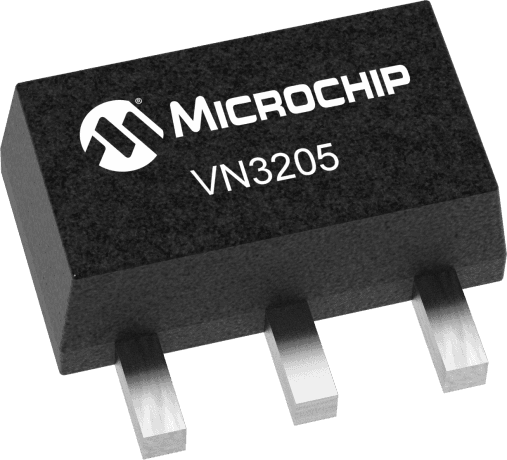

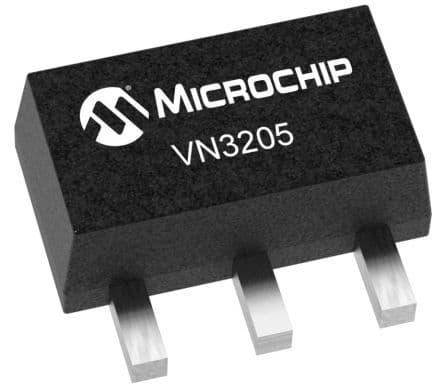

Product Images
