MT41J128M16HA-187E:D

DDR3 SDRAM 2Gb 128Mx16 1066MHz 1.5V FBGA Memory IC

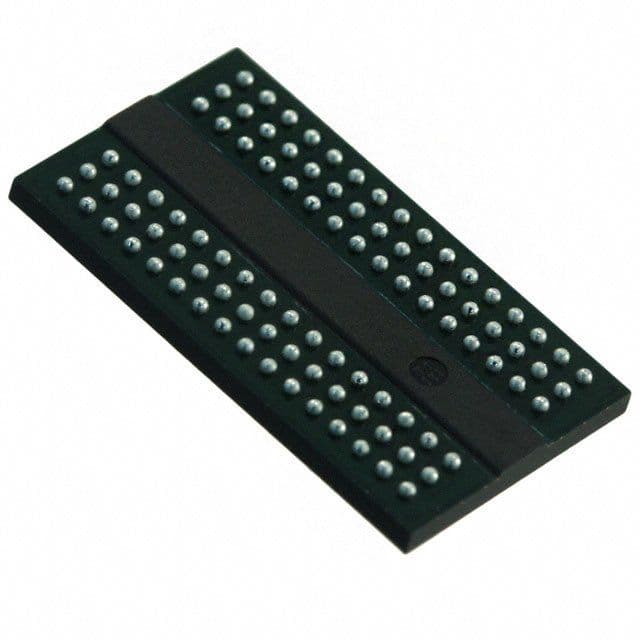

DDR3 SDRAM memory component offering 2Gb density with a 128M x 16-bit organization. Features a maximum operating frequency of 1.066GHz (533MHz) and an access time of 0.3ns. Operates with a supply voltage range of 1.425V to 1.575V. This surface mount component is housed in a 96-pin FBGA package with dimensions of 14mm length and 9mm width, and a height of 0.8mm. RoHS compliant and lead-free.

Frequency533MHz

PackageFBGA

Current210mA

MountingSurface Mount

Quick Jump:

Technical Specifications

Micron MT41J128M16HA-187E:D technical specifications.

General

Access Time	13.125ns
Access Time-Max	0.3ns
Address Bus Width	17b
Package/Case	FBGA
Data Bus Width	16b
Density	2Gb
Frequency	533MHz
Height	0.8mm
Lead Free	Lead Free
Length	14mm
Max Frequency	1.066GHz
Max Operating Temperature	95°C
Memory Size	2Gb
Memory Type	Volatile,
Min Operating Temperature	0°C
Max Supply Voltage	1.575V
Min Supply Voltage	1.425V
Mount	Surface Mount
Operating Supply Voltage	1.5V
Organization	128MX16
Packaging	Tray
Radiation Hardening	No
RoHS Compliant	Yes
Supply Current	210mA
Width	9mm
