Technical Specifications
Micron MT47H64M16BT-5E:A technical specifications.
General
| Access Time | 600ps |
| Access Time-Max | 0.6ns |
| Address Bus Width | 16b |
| Package/Case | FBGA |
| Data Bus Width | 16b |
| Density | 1Gb |
| Frequency | 200MHz |
| Lead Free | Lead Free |
| Max Frequency | 400MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.9V |
| Memory Size | 1Gb |
| Memory Type | Volatile, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 1.8V |
| Organization | 64MX16 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 160mA |
Compliance
| RoHS | Compliant |
Datasheet
Micron MT47H64M16BT-5E:A Datasheet
Download the complete datasheet for Micron MT47H64M16BT-5E:A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

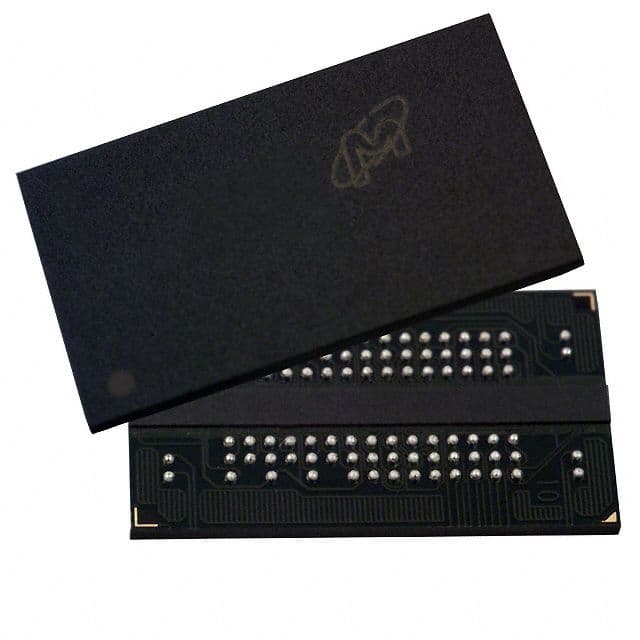

Product Images
