Micron
MT48LC4M16A2P-6A:J
Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54
Frequency167MHz
PackageTSOP
Current100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC4M16A2P-6A:J technical specifications.
General
Access Time
5.4ns
Access Time-Max
5.4ns
Address Bus Width
14b
Package/Case
TSOP
Data Bus Width
16b
Density
64Mb
Frequency
167MHz
Lead Free
Lead Free
Max Frequency
167MHz
Max Operating Temperature
70°C
Max Supply Voltage
3.6V
Memory Size
64Mb
Memory Type
Volatile,
Min Operating Temperature
0°C
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Organization
4MX16
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
100mA
Compliance
RoHS
Compliant
Datasheet
Micron MT48LC4M16A2P-6A:J Datasheet
Download the complete datasheet for Micron MT48LC4M16A2P-6A:J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

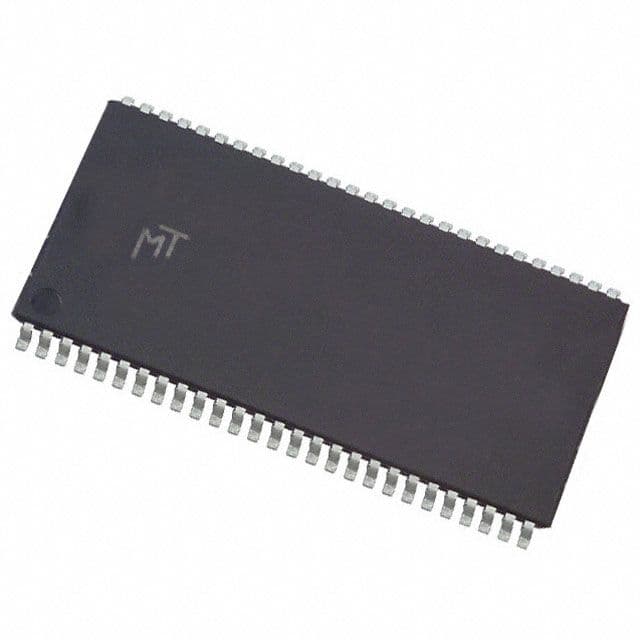

Product Images
