The 1N5711-1 is a general purpose rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum repetitive reverse voltage of 70V and a maximum forward current of 15A. The diode is packaged in a hermetic sealed glass package and is available in bulk packaging. It is not radiation hardened and is not RoHS compliant.
PackageDO-35
MountingThrough Hole
Quick Jump:
Technical Specifications
Microsemi 1N5711-1 technical specifications.
General
| Average Rectified Current | 33mA |
| Package/Case | DO-35 |
| Forward Current | 15A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Voltage (DC) | 70V |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Microsemi 1N5711-1 Datasheet
Download the complete datasheet for Microsemi 1N5711-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

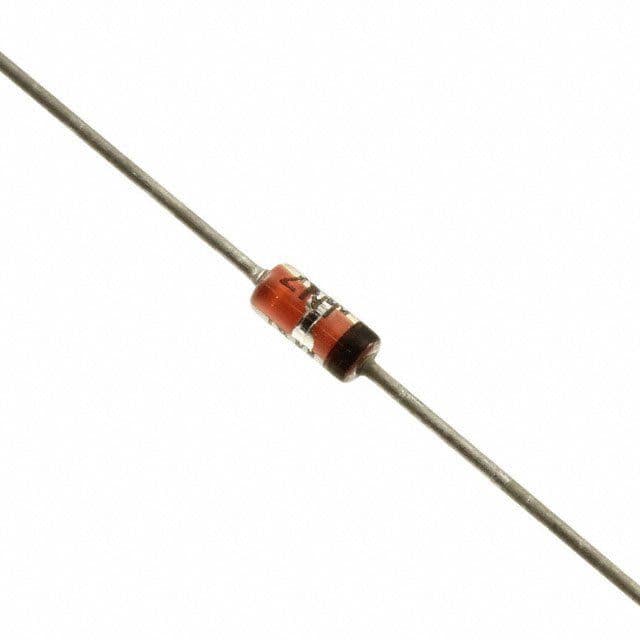

Product Images
