High-performance rectifier diode, 1-phase, 1-element, with a 60A average rectified current and 1.2kV repetitive reverse voltage. Features a 60A forward current, 540A surge current capability, and a fast 320ns reverse recovery time. Housed in a TO-247 package for through-hole mounting, operating from -55°C to 175°C. This silicon diode is lead-free and RoHS compliant.
PackageTO-247-2
Current Rating60A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Microsemi APT60DQ120BG technical specifications.
General
Average Rectified Current
60A
Package/Case
TO-247-2
Current Rating
60A
Forward Current
60A
Height
5.31mm
Lead Free
Lead Free
Length
21.46mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
100uA
Max Reverse Voltage (DC)
1.2kV
Max Surge Current
540A
Mount
Through Hole
Output Current
60A
Package Quantity
1
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
540A
Polarity
Standard
Radiation Hardening
No
Reverse Recovery Time
320ns
Reverse Voltage (DC)
1.2kV
RoHS Compliant
Yes
DC Rated Voltage
1.2kV
Weight
0.229281oz
Width
16.26mm
Compliance
RoHS
Compliant
Datasheet
Microsemi APT60DQ120BG Datasheet
Download the complete datasheet for Microsemi APT60DQ120BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

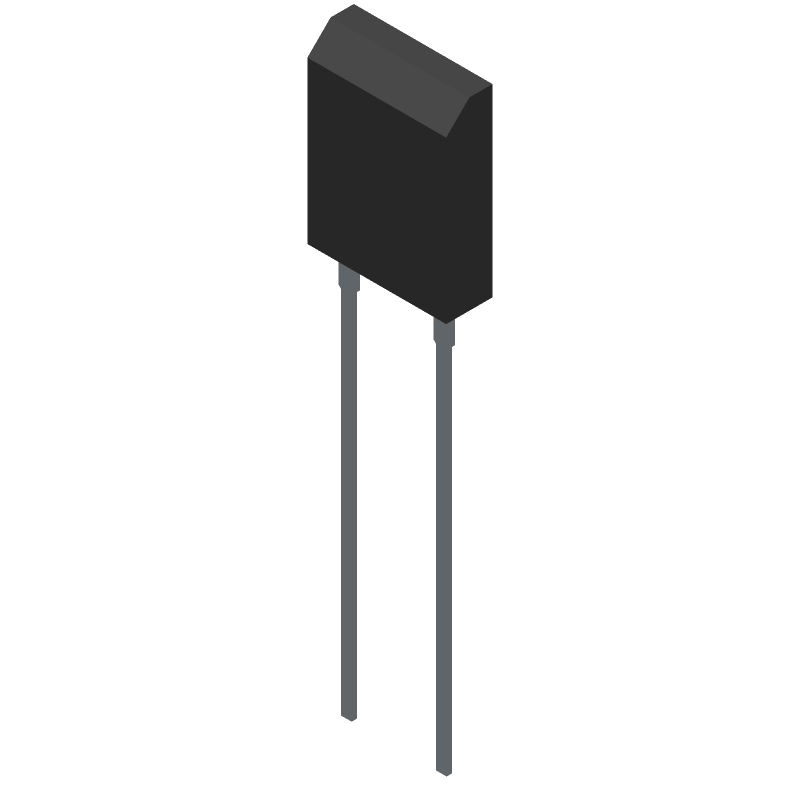

Product Images
