8-way, right-angle male pin header with a 4.2mm pitch, designed for through-hole board mounting. Features brass contacts with tin/copper plating and tin mating finish, rated for 7A current and 600V voltage. Constructed with a natural nylon housing, this component offers a 2-row configuration and operates within a temperature range of -40°C to 105°C. It is RoHS compliant, lead-free, and low halogen, with UL94 V-2 flammability rating.
Voltage Rating600V
Current Rating7A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
Molex 39-29-1088 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Natural |
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Copper |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 7A |
| Depth | 19.4mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 11.4mm |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Lead Pitch | 4.2mm |
| Length | 28mm |
| Material | Brass |
| Max Current Rating | 7A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Board |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 225 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 5.5mm |
| Series | Mini-Fit Jr 5569 |
| Termination | Solder |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 600V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-29-1088 Datasheet
Download the complete datasheet for Molex 39-29-1088 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

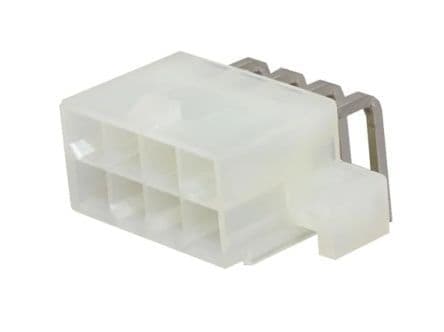

Product Images
