8-position, 1-row, right-angle female connector with 1mm pitch. Features bronze contacts with tin plating, rated for 500mA and 50V (5.05kV DC max). Operates between -20°C and 80°C, with UL94 V-0 flammability. Supplied on tape and reel, 1000 units per package.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 52852-0870 technical specifications.
General
| Contact Location | Bottom |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 500mA |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Material | Bronze |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 5.05kV |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 52852 |
| Stackable | No |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52852-0870 Datasheet
Download the complete datasheet for Molex 52852-0870 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

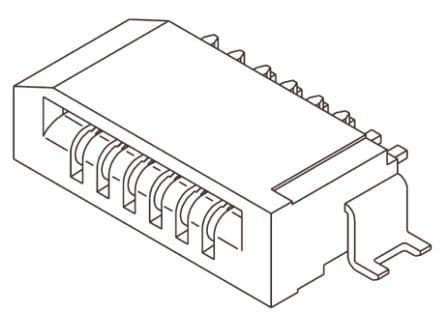

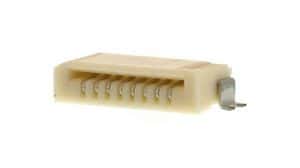

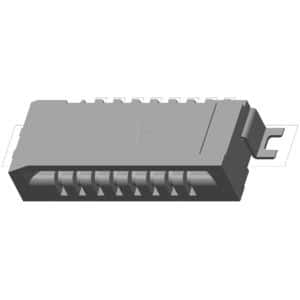

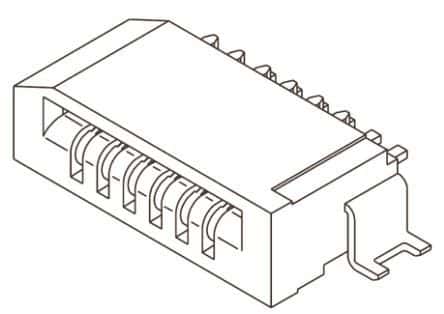

Product Images
