Technical Specifications

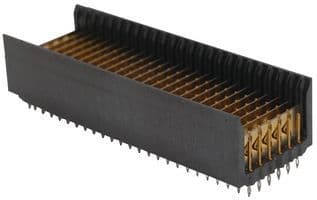

Molex 76763-8501 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1A |
| Gender | Male |
| Number of Circuits | 150 |
| Number of Columns | 25 |
| Number of Contacts | 150 |
| Number of Positions | 150 |
| Number of Rows | 6 |
| Orientation | Vertical |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Reach SVHC Compliant | Unknown |
| Row Spacing | 2.25mm |
| Series | 76763 |
| Termination | Solder |
| Voltage Rating (AC) | 120V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 76763-8501 Datasheet
Download the complete datasheet for Molex 76763-8501 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
