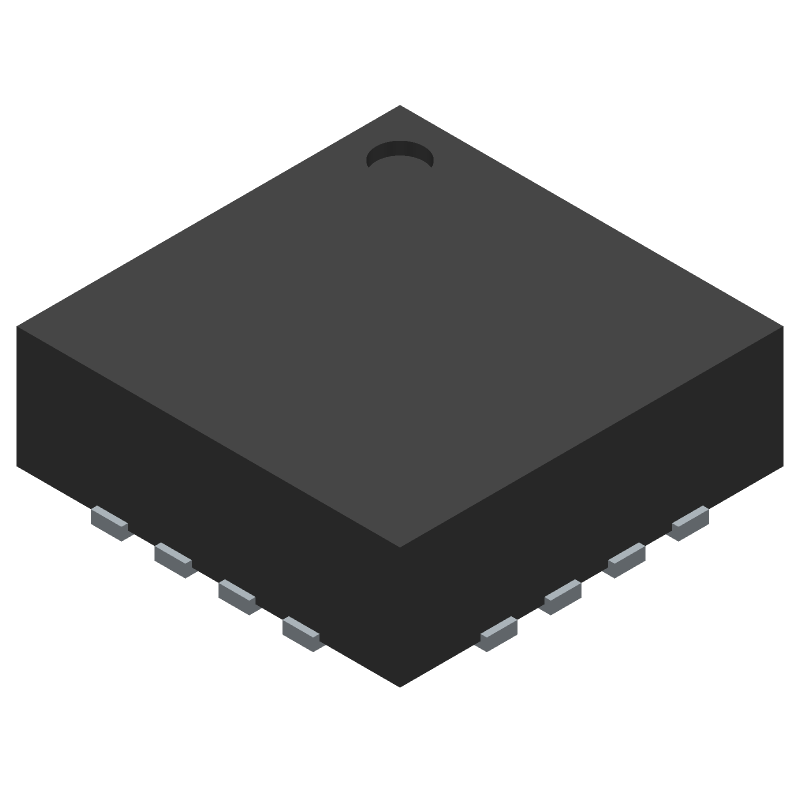

Automotive-grade analog circuit featuring a single channel and one function. This 16-terminal integrated circuit operates within a supply voltage range of 3V to 3.6V, with a nominal supply voltage of 3.3V. Designed for extreme environments, it boasts a temperature grade of AUTOMOTIVE, supporting operation from -40°C to 125°C. The component is housed in a 3mm x 3mm S-XQCC-N16 package with terminals positioned in a QUAD configuration.
Quick Jump:
Technical Specifications
Monolithic Power Systems MA730GQ-Z technical specifications.
General
Max Operating Temperature
125
Number of Terminals
16
Min Operating Temperature
-40
Terminal Position
QUAD
JEDEC Package Code
S-XQCC-N16
Width
3
Length
3
Number of Functions
1
Temperature Grade
AUTOMOTIVE
Supply Voltage-Nom (Vsup)
3.3
Supply Voltage-Max (Vsup)
3.6
Supply Voltage-Min (Vsup)
3
Number of Channels
1
Compliance
RoHS
Yes
REACH
Compliant
Military Spec
False
Datasheet
Monolithic Power Systems MA730GQ-Z Datasheet
Download the complete datasheet for Monolithic Power Systems MA730GQ-Z to view detailed technical specifications.
No datasheet is available for this part.
