Technical Specifications
Monolithic Power Systems MP26060EQ-LF-Z technical specifications.
General
Battery Chemistry
LITHIUM-ION
Battery Pack Voltage
4.15V
Package/Case
QFN
Fault Protection
Over Current, Over Voltage
Lead Free
Lead Free
Max Charge Current
1A
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Supply Voltage
6.5V
Mount
Surface Mount
Number of Cells
1
Output Current
1A
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Compliance
RoHS
Compliant
Datasheet
Monolithic Power Systems MP26060EQ-LF-Z Datasheet
Download the complete datasheet for Monolithic Power Systems MP26060EQ-LF-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

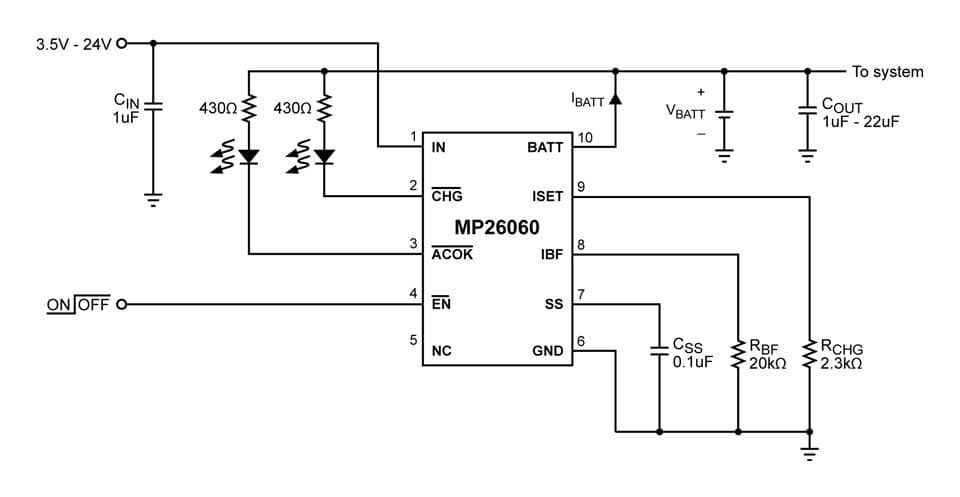

Product Images
