Voltage Rating1kV
Current Rating5A
MountingFree Hanging
Quick Jump:
Technical Specifications
Mueller Electric BU-P3690-0 technical specifications.
General
| Body Material | Nylon, Polyamide |
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 5A |
| Gender | Male |
| Insulation | Non-Mating End Insulated |
| Insulation Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -50°C |
| Mount | Free Hanging |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | BU |
| Termination | Solder |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
Mueller Electric BU-P3690-0 Datasheet
Download the complete datasheet for Mueller Electric BU-P3690-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

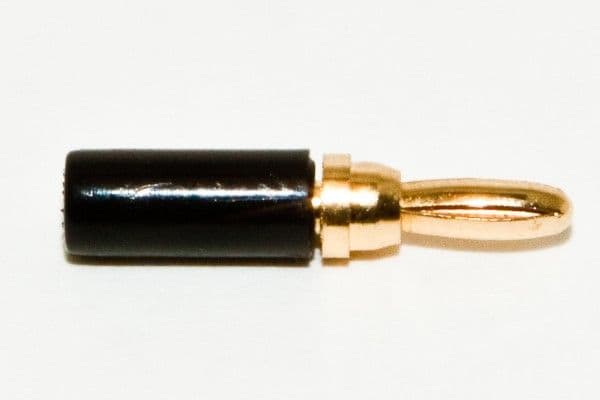

Product Images
