Multicomp
BAT42WS
MULTICOMP BAT42WS Small Signal Schottky Diode, Single, 30 V, 200 mA, 400 mV, 4 A, 125 C
Quick Jump:
Technical Specifications
Multicomp BAT42WS technical specifications.
General
Forward Current
200mA
Max Forward Surge Current (Ifsm)
4A
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Power Dissipation
200mW
Max Repetitive Reverse Voltage (Vrrm)
30V
Packaging
Cut Tape
Reach SVHC Compliant
No
Reverse Recovery Time
5ns
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Multicomp BAT42WS Datasheet
Download the complete datasheet for Multicomp BAT42WS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

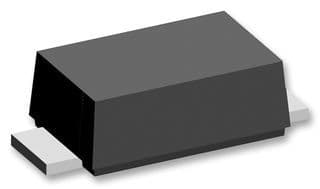

Product Images
