PackageSMB
PolarityUnidirectional
Quick Jump:
Technical Specifications
Multicomp P6SMBJ5.0A technical specifications.
General
Package/Case
SMB
Flammability Rating
UL94 V-0
Max Breakdown Voltage
7.25V
Min Breakdown Voltage
6.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
600W
Packaging
Cut Tape
Peak Pulse Current
65.2A
Polarity
Unidirectional
Reach SVHC Compliant
No
Reverse Standoff Voltage
5V
Width
4.57mm
Compliance
RoHS
Compliant
Datasheet
Multicomp P6SMBJ5.0A Datasheet
Download the complete datasheet for Multicomp P6SMBJ5.0A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

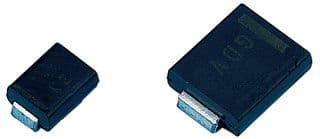

Product Images
