General purpose radial leaded inductor with 100µH inductance and 10% tolerance. Features a DC current rating of 5.4A, a low DC resistance of 46mΩ, and a Q factor of 24 at 1kHz. Operates within a temperature range of -40°C to 85°C. This unshielded component is RoHS compliant and designed for through-hole mounting.
PackageRadial
MountingThrough Hole
Inductance100uH
Quick Jump:
Technical Specifications
Murata 1410454C technical specifications.
General
Package/Case
Radial
DC Current
5.4A
DC Resistance (DCR)
46mR
Depth
25.9mm
Height
1.5mm
Inductance
100uH
Inductance Tolerance
10%
Lead Free
Lead Free
Lead Length
10mm
Lead Pitch
23.6mm
Lead/Base Style
Radial
Length
14mm
Max DC Current
5.4A
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Through Hole
Orientation
Vertical
Package Quantity
25
Packaging
Tray
Q Factor
24
Radiation Hardening
No
Rated Current-Max
5.4A
Reach SVHC Compliant
No
RMS Current (Irms)
5.4A
RoHS Compliant
Yes
Saturation Current
5.4A
Self Resonant Frequency
4.6MHz
Series
1400
Shielding
Unshielded
Termination
Radial
Test Frequency
1kHz
Tolerance
10%
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Murata 1410454C Datasheet
Download the complete datasheet for Murata 1410454C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

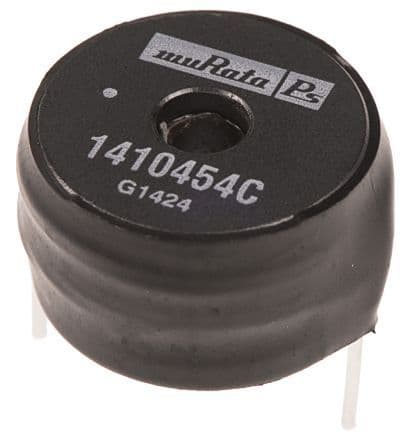

Product Images
