General purpose radial leaded inductor with 1mH inductance and 10% tolerance. Features a ferrite core, 170mA DC current rating, and 3.63 Ohm DC resistance. Operates within a -25°C to 70°C temperature range. This unshielded component is RoHS compliant and designed for through-hole mounting.
PackageRadial
MountingThrough Hole
Inductance1mH
Quick Jump:
Technical Specifications
Murata 22R105C technical specifications.
General
Package/Case
Radial
Core Material
Ferrite
DC Current
170mA
DC Resistance (DCR)
3.63R
Height
10.5mm
Inductance
1mH
Inductance Tolerance
10%
Lead Free
Lead Free
Lead Length
35mm
Lead Pitch
3mm
Lead/Base Style
Radial
Length
8.5mm
Max DC Current
170mA
Max Operating Temperature
70°C
Military Standard
Not
Min Operating Temperature
-25°C
Mount
Through Hole
Orientation
Vertical
Package Quantity
100
Packaging
Bulk
Q Factor
120
Radiation Hardening
No
Rated Current-Max
170mA
Reach SVHC Compliant
No
RMS Current (Irms)
170mA
RoHS Compliant
Yes
Self Resonant Frequency
2.1MHz
Series
2200R
Shielding
Unshielded
Termination
Radial
Test Frequency
1kHz
Tolerance
10%
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Murata 22R105C Datasheet
Download the complete datasheet for Murata 22R105C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

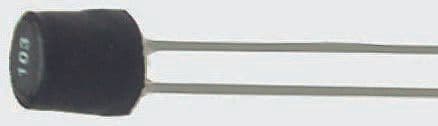

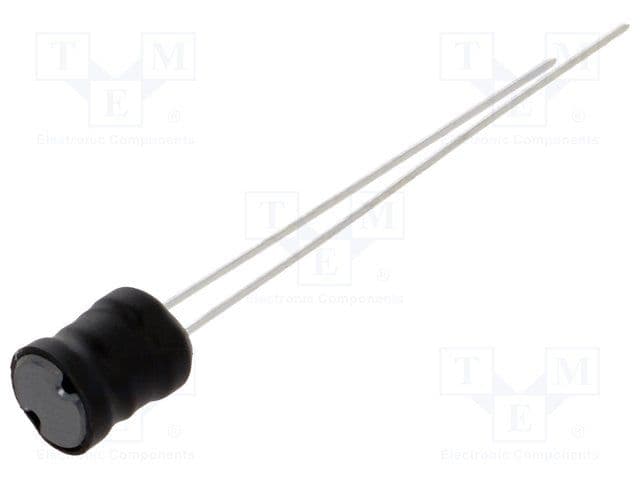

Product Images
