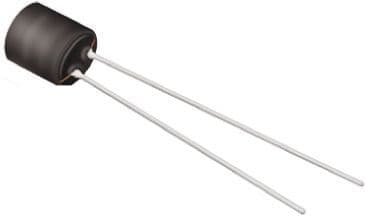

General purpose radial leaded inductor with 33µH inductance and 10% tolerance. Features a ferrite core, 900mA current rating, and 140mΩ DC resistance. Operates within a -25°C to 70°C temperature range. Through-hole mounting with 3mm lead pitch. RoHS compliant.
PackageRadial
Current Rating900mA
MountingThrough Hole, Radial
Inductance33uH
Quick Jump:
Technical Specifications
Murata 22R333C technical specifications.
General
Package/Case
Radial
Contact Plating
Tin
Current Rating
900mA
DC Current
900mA
DC Resistance (DCR)
140mR
Height
10.5mm
Height - Seated (Max)
0.355inch
Inductance
33uH
Inductance Tolerance
10%
Lead Free
Lead Free
Lead Length
35mm
Lead Pitch
3mm
Lead/Base Style
Radial
Length
8.5mm
Max DC Current
900mA
Max Operating Temperature
70°C
Military Standard
Not
Min Operating Temperature
-25°C
Mount
Through Hole, Radial
Package Quantity
100
Packaging
Bulk
Q Factor
50
Radiation Hardening
No
Rated Current-Max
900mA
Reach SVHC Compliant
No
RMS Current (Irms)
900mA
RoHS Compliant
Yes
Self Resonant Frequency
11.4MHz
Series
2200R
Shielding
Unshielded
Termination
Radial
Test Frequency
1kHz
Tolerance
10%
Type
General Purpose
Compliance
RoHS
Compliant
