MountingThrough Hole
Inductance500uH
Quick Jump:
Technical Specifications
Murata 78604/2C technical specifications.
General
DC Resistance (DCR)
340mR
Flammability Rating
UL94 V-0
Height
6.35mm
Inductance
500uH
Isolation Voltage
1kV
Length
9.52mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
DIP
Transformer Type
GENERAL PURPOSE
Turns Ratio
2:1
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Murata 78604/2C Datasheet
Download the complete datasheet for Murata 78604/2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

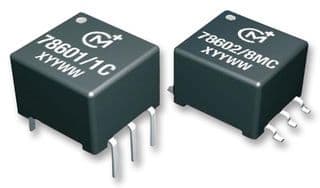

Product Images
