Ferrite chip EMI/RFI filter for data lines, featuring a 0603 (1608 metric) surface mount package. This single-circuit component offers 220 Ohm impedance at 100MHz, with a maximum current rating of 450mA and a maximum DC current of 200mA. Operating across a temperature range of -55°C to 125°C, it is AEC-Q200 qualified and RoHS compliant.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata BLM18BB221SH1D technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Ferrite
Depth
0.95mm
Height
0.037inch
Impedance
220R
Length
0.063inch
Max Current Rating
450mA
Max DC Current
200mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Ratings
AEC-Q200
RoHS Compliant
Yes
Series
EMIFIL®, BLM18B
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Murata BLM18BB221SH1D Datasheet
Download the complete datasheet for Murata BLM18BB221SH1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

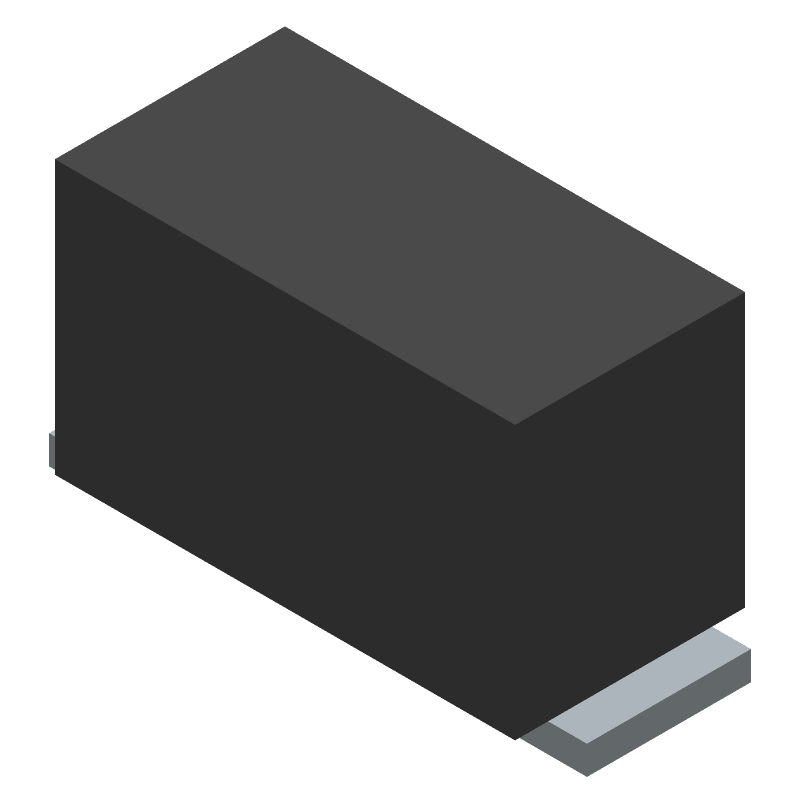

Product Images
