Multi-layer ferrite bead for EMI suppression. Features 47 Ohm impedance at 100MHz with a 25% tolerance. Rated for 600mA RMS current and 550mA DC current. Operates from -55°C to 125°C. Housed in a compact 0603 (1608 metric) SMD package with tin terminals.
Package0603
Current Rating550mA
Quick Jump:
Technical Specifications
Murata BLM18BB470SN1D technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Ferrite
Current Rating
550mA
DC Current
550mA
DC Resistance (DCR)
250mR
DC Resistance-Max
300mR
Depth
0.8mm
ESR (Equivalent Series Resistance)
47R
Height
0.8mm
Impedance
47R
Lead Free
Lead Free
Length
1.6mm
Manufacturer Series
BLM18B
Material
Steel, Ferrite
Max Current Rating
550mA
Max DC Current
550mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Functions
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
600mA
RoHS Compliant
Yes
Series
BLM18B
Series Resistance
250mR
Shielding
Unshielded
Terminal Finish
Tin
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM18BB470SN1D Datasheet
Download the complete datasheet for Murata BLM18BB470SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

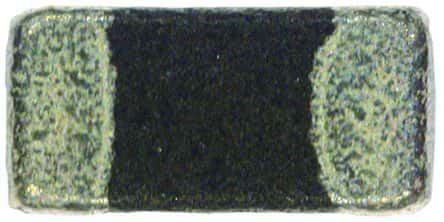

Product Images
