Ferrite chip EMI/RFI filter for data lines, featuring a 0805 (2012 metric) EIA standard package size. This single-line, single-function component offers 750 Ohms impedance at 100MHz, with a 200mA current rating and 400mR DC resistance. Constructed with ferrite core material and steel termination, it operates within a -55°C to 125°C temperature range and is RoHS compliant.
Package0805
Resistance400mR
Current Rating200mA
Quick Jump:
Technical Specifications
Murata BLM21BD751SN1D technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Ferrite
Current Rating
200mA
DC Resistance (DCR)
400mR
Depth
1.25mm
Height
0.85mm
Impedance
750R
Lead Free
Lead Free
Length
2mm
Material
Steel, Ferrite
Max Current Rating
250mA
Max DC Current
200mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
400mR
RMS Current (Irms)
250mA
RoHS Compliant
Yes
Series
BLM21B
Series Resistance
400mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM21BD751SN1D Datasheet
Download the complete datasheet for Murata BLM21BD751SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

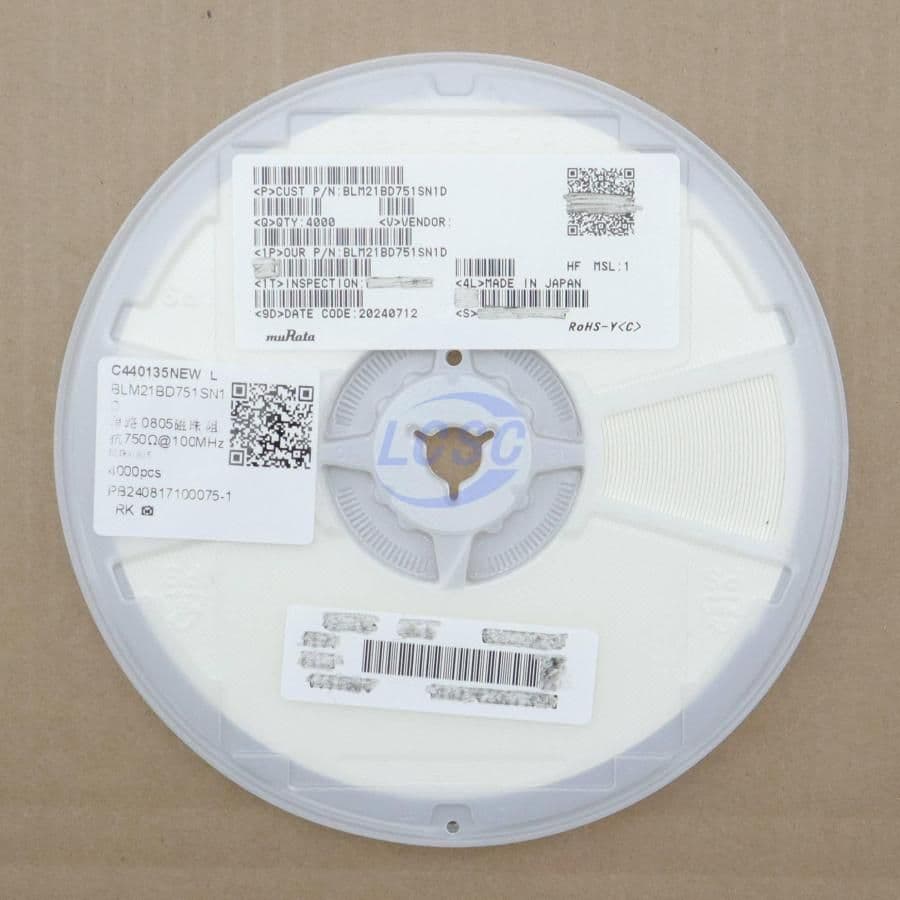

Product Images
