Murata

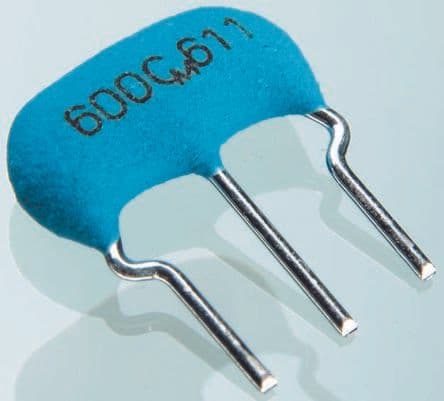

CSTLS16M0X51-A0
Ceramic Resonator 16MHz ±0.5% (Tol) ±0.2% (Stability) 5pF 50Ohm 3-Pin Thru-Hole Ammo
Frequency16MHz
PackageRadial
Capacitance5pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata CSTLS16M0X51-A0 technical specifications.
General
Capacitance
5pF
Package/Case
Radial
Contact Plating
Copper, Tin
ESR (Equivalent Series Resistance)
50R
Frequency
16MHz
Frequency Stability
0.2%
Frequency Tolerance
0.5%
Height
0.276inch
Impedance
50R
Length
5.5mm
Load Capacitance
5pF
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Through Hole
Package Quantity
2000
Packaging
Tape and Reel
RoHS Compliant
Yes
Self Resonant Frequency
16MHz
Series
CERALOCK® CSTLS
Termination
Through Hole
Tolerance
0.5%
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Murata CSTLS16M0X51-A0 Datasheet
Download the complete datasheet for Murata CSTLS16M0X51-A0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
