8MHz radial ceramic resonator with 0.5% frequency tolerance and 0.2% frequency stability. Features a 15pF load capacitance and 25 Ohm impedance. Through-hole mounting with copper, tin plated contacts. Operates from -20°C to 80°C and is RoHS compliant.
Frequency8MHz
PackageRadial
Capacitance15pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata CSTLS8M00G53-A0 technical specifications.
General
Capacitance
15pF
Package/Case
Radial
Contact Plating
Copper, Tin
Frequency
8MHz
Frequency Stability
0.2%
Frequency Tolerance
0.5%
Height
0.236inch
Impedance
25R
Lead Free
Lead Free
Length
0.315inch
Load Capacitance
15pF
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Frequency
8 MHz
Package Quantity
2000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
8MHz
Series
CERALOCK® CSTLS
Termination
Through Hole
Tolerance
0.5%
Width
0.118inch
Compliance
RoHS
Compliant
Datasheet
Murata CSTLS8M00G53-A0 Datasheet
Download the complete datasheet for Murata CSTLS8M00G53-A0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

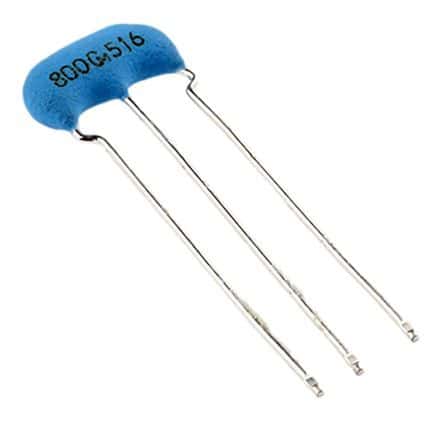

Product Images
