Murata
DE2E3KY472MA3BM02F
Cap Ceramic Single Suppression X1/Y2 0.0047uF 250VAC E 20% (10 X 5mm) Radial 7.5mm 125°C Bulk
PackageRadial
Voltage250V
Capacitance4.7nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata DE2E3KY472MA3BM02F technical specifications.
General
Capacitance
4.7nF
Package/Case
Radial
Depth
5.5mm
Diameter
10mm
Dielectric Material
Ceramic
Dissipation Factor
2.5%
Height - Seated (Max)
0.512inch
Lead Free
Lead Free
Lead Pitch
0.295inch
Lead/Base Style
Formed Leads
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
250
Packaging
Bulk
Ratings
X1, Y2
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KY
Termination
Radial
Tolerance
20%
Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Murata DE2E3KY472MA3BM02F Datasheet
Download the complete datasheet for Murata DE2E3KY472MA3BM02F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

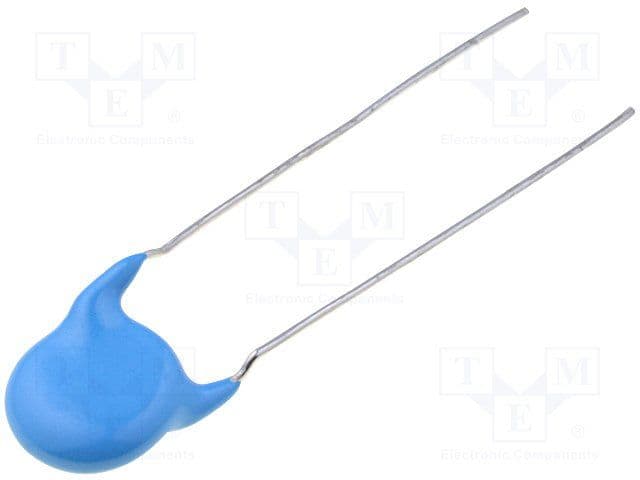

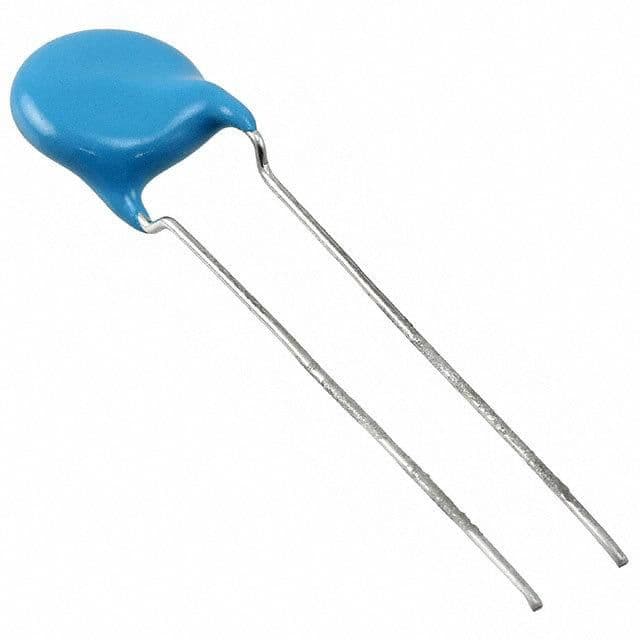

Product Images
