PackageRadial
Capacitance22pF
Voltage Rating2kV
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata DEA1X3D220JP2A technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
22pF
Package/Case
Radial
Construction
RADIAL
Depth
5mm
Height - Seated (Max)
0.295inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Lead/Base Style
Straight
Max Operating Temperature
125°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
1500
Packaging
Cut Tape
RoHS Compliant
Yes
Series
DEA
Termination
Radial
Tolerance
5%
Voltage Rating
2kV
DC Rated Voltage
2kV
Compliance
RoHS
Compliant
Datasheet
Murata DEA1X3D220JP2A Datasheet
Download the complete datasheet for Murata DEA1X3D220JP2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

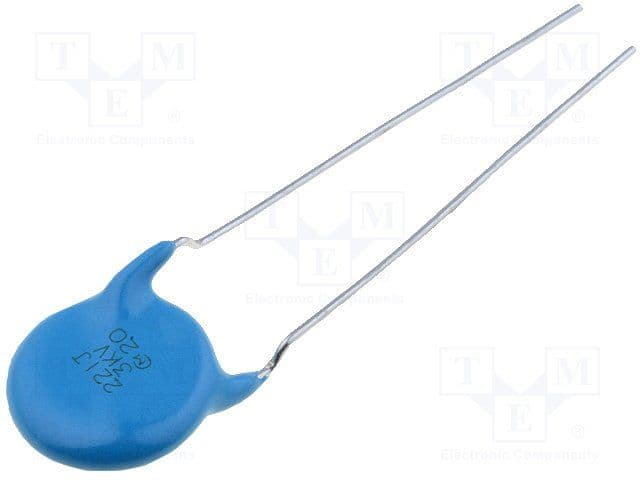

Product Images
