Radial ceramic capacitor with 220pF capacitance and 10% tolerance, rated for 1kV DC. Features a 5mm lead pitch and 0.6mm lead diameter for through-hole mounting. Constructed with ceramic material, this component operates from -25°C to 85°C and is supplied in an ammo pack. Dimensions include 4.5mm length, 4mm depth, and a seated height of 0.295 inches.
PackageRadial
Voltage1kV
Capacitance220pF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Murata DEBB33A221KP2A technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
220pF
Package/Case
Radial
Construction
RADIAL
Depth
4mm
Height - Seated (Max)
0.295inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Lead/Base Style
Straight
Length
4.5mm
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
1
Packaging
Ammo Pack
Radiation Hardening
No
RoHS Compliant
Yes
Series
DEB
Termination
Radial
Tolerance
10%
Voltage
1kV
Voltage Rating
1kV
DC Rated Voltage
1kV
Compliance
RoHS
Compliant
Datasheet
Murata DEBB33A221KP2A Datasheet
Download the complete datasheet for Murata DEBB33A221KP2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

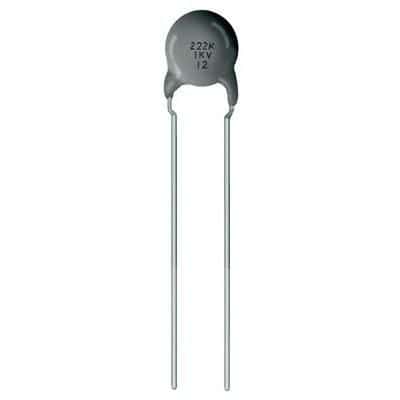

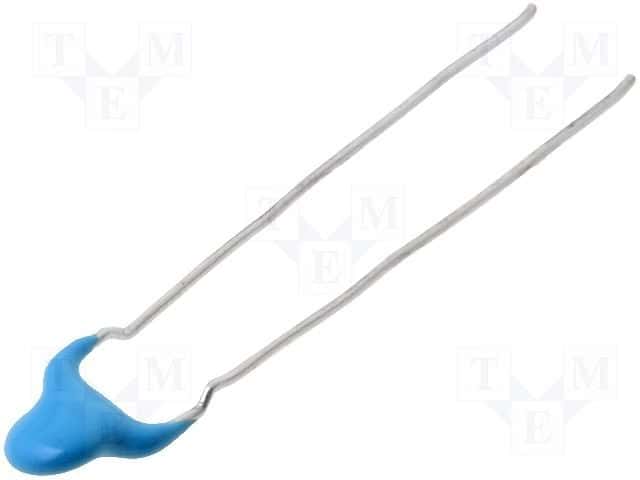

Product Images
