Radial ceramic capacitor, 100pF capacitance, 3.15kV DC rated voltage, 10% tolerance. Features a 7.5mm lead pitch, 0.6mm lead diameter, and straight lead style for through-hole mounting. Constructed with ceramic material, this component operates from -25°C to 85°C and measures 5mm x 6mm. Packaged in tape and reel for automated assembly.
PackageRadial
Voltage3.15kV
Capacitance100pF
Voltage Rating3.15kV
Quick Jump:
Technical Specifications
Murata DEBB33F101KP3A technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
100pF
Package/Case
Radial
Construction
RADIAL
Depth
6mm
Height - Seated (Max)
0.315inch
Lead Diameter
0.6mm
Lead Pitch
7.5mm
Lead/Base Style
Straight
Length
5mm
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
900
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DEB
Termination
Radial
Tolerance
10%
Voltage
3.15kV
Voltage Rating
3.15kV
DC Rated Voltage
3.15kV
Compliance
RoHS
Compliant
Datasheet
Murata DEBB33F101KP3A Datasheet
Download the complete datasheet for Murata DEBB33F101KP3A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

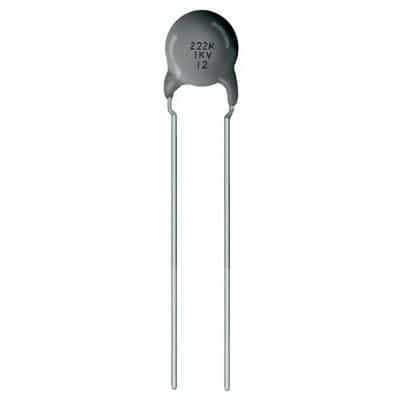

Product Images
