PackageRadial
Capacitance1.5nF
Voltage Rating3.15kV
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata DEBB33F152KA3B technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
1.5nF
Package/Case
Radial
Construction
RADIAL
Depth
6mm
Height - Seated (Max)
0.551inch
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Length
25mm
Lead Pitch
7.5mm
Lead/Base Style
Straight
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
250
Packaging
Bulk
RoHS Compliant
Yes
Series
DEB
Termination
Radial
Tolerance
10%
Voltage Rating
3.15kV
DC Rated Voltage
3.15kV
Compliance
RoHS
Compliant
Datasheet
Murata DEBB33F152KA3B Datasheet
Download the complete datasheet for Murata DEBB33F152KA3B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

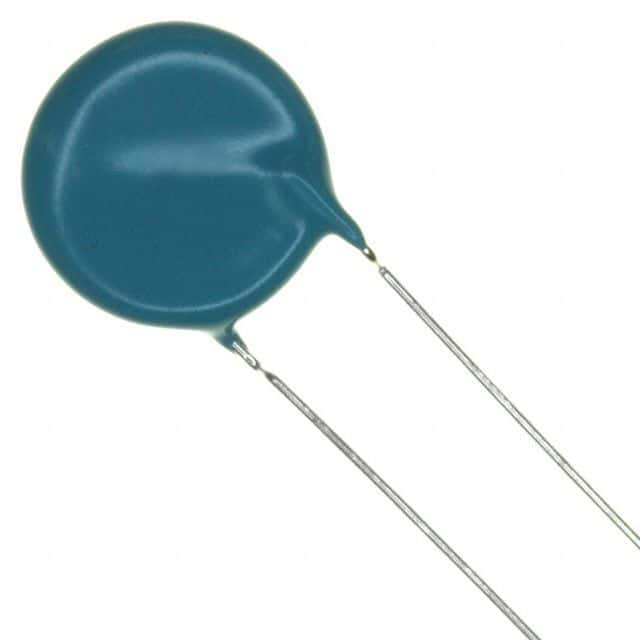

Product Images
