PackageRadial
Voltage2kV
Capacitance4.7nF
Voltage Rating2kV
Quick Jump:
Technical Specifications
Murata DEBE33D472ZN2A technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
4.7nF
Package/Case
Radial
Construction
RADIAL
Depth
5mm
Height - Seated (Max)
0.551inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Lead/Base Style
Straight
Length
11mm
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
3000
Packaging
Cut Tape
RoHS Compliant
Yes
Series
DEB
Termination
Radial
Tolerance
80%
Voltage
2kV
Voltage Rating
2kV
DC Rated Voltage
2kV
Compliance
RoHS
Compliant
Datasheet
Murata DEBE33D472ZN2A Datasheet
Download the complete datasheet for Murata DEBE33D472ZN2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

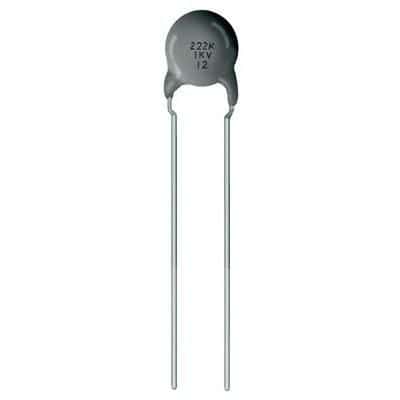

Product Images
