Single layer ceramic capacitor with 2.2nF capacitance and 2kV DC rated voltage. Features a radial package with 5mm lead pitch and 0.6mm lead diameter, suitable for through-hole mounting. Operating temperature range is -25°C to 85°C, with a tolerance of -20% to 80%. Dimensions are 7mm length, 5mm depth, and a seated height of 0.394 inches. This RoHS compliant component is supplied in cut tape packaging.
PackageRadial
Voltage2kV
Capacitance2.2nF
Voltage Rating2kV
Quick Jump:
Technical Specifications
Murata DEBF33D222ZN2A technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
2.2nF
Package/Case
Radial
Construction
RADIAL
Depth
5mm
Height - Seated (Max)
0.394inch
Lead Diameter
0.6mm
Lead Pitch
5mm
Lead/Base Style
Straight
Length
7mm
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
3000
Packaging
Cut Tape
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DEB
Termination
Radial
Tolerance
80%
Voltage
2kV
Voltage Rating
2kV
DC Rated Voltage
2kV
Compliance
RoHS
Compliant
Datasheet
Murata DEBF33D222ZN2A Datasheet
Download the complete datasheet for Murata DEBF33D222ZN2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

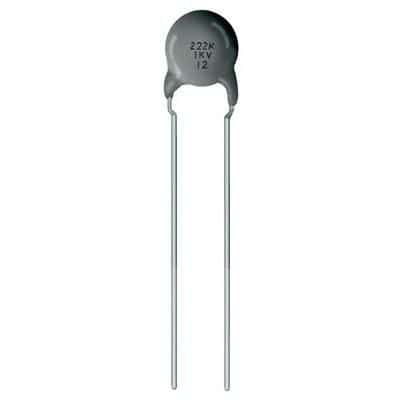

Product Images
