Radial leaded ceramic capacitor with 220pF capacitance and 10% tolerance. Features a 6.3kV DC rated voltage and operates across a -25°C to 85°C temperature range. Constructed with ceramic material and a straight lead style, this through-hole component has a 10mm lead pitch and a 9mm x 7mm body size. Suitable for general purpose applications and supplied in bulk packaging.
PackageRadial
Voltage6.3kV
Capacitance220pF
Voltage Rating6.3kV
Quick Jump:
Technical Specifications
Murata DECB33J221KC4B technical specifications.
General
Application(s)
GENERAL PURPOSE
Body Diameter
9mm
Capacitance
220pF
Package/Case
Radial
Construction
RADIAL
Depth
7mm
Height - Seated (Max)
0.512inch
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Length
25mm
Lead Pitch
10mm
Lead/Base Style
Straight
Length
9mm
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
250
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DEC
Termination
Radial
Tolerance
10%
Voltage
6.3kV
Voltage Rating
6.3kV
DC Rated Voltage
6.3kV
Compliance
RoHS
Compliant
Datasheet
Murata DECB33J221KC4B Datasheet
Download the complete datasheet for Murata DECB33J221KC4B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

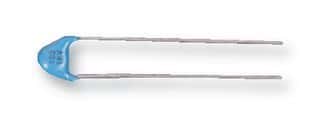

Product Images
