This ceramic capacitor from Murata features a capacitance of 2.2nF with a 10% tolerance. It has a maximum operating temperature of 125°C and a minimum operating temperature of -25°C. The capacitor is constructed with a radial lead style and is designed for through-hole mounting. It is lead-free and RoHS compliant, making it suitable for a variety of applications.
PackageRadial
Capacitance2.2nF
Voltage Rating3.15kV
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata DEHR33F222KN7A technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Capacitance | 2.2nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 6mm |
| Height - Seated (Max) | 0.787inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | DEH |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 3.15kV |
| DC Rated Voltage | 3kV |
Compliance
| RoHS | Compliant |
Datasheet
Murata DEHR33F222KN7A Datasheet
Download the complete datasheet for Murata DEHR33F222KN7A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

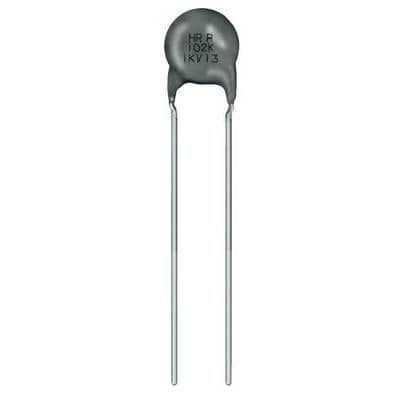

Product Images
