Murata
DFE252007F-1R0M=P2

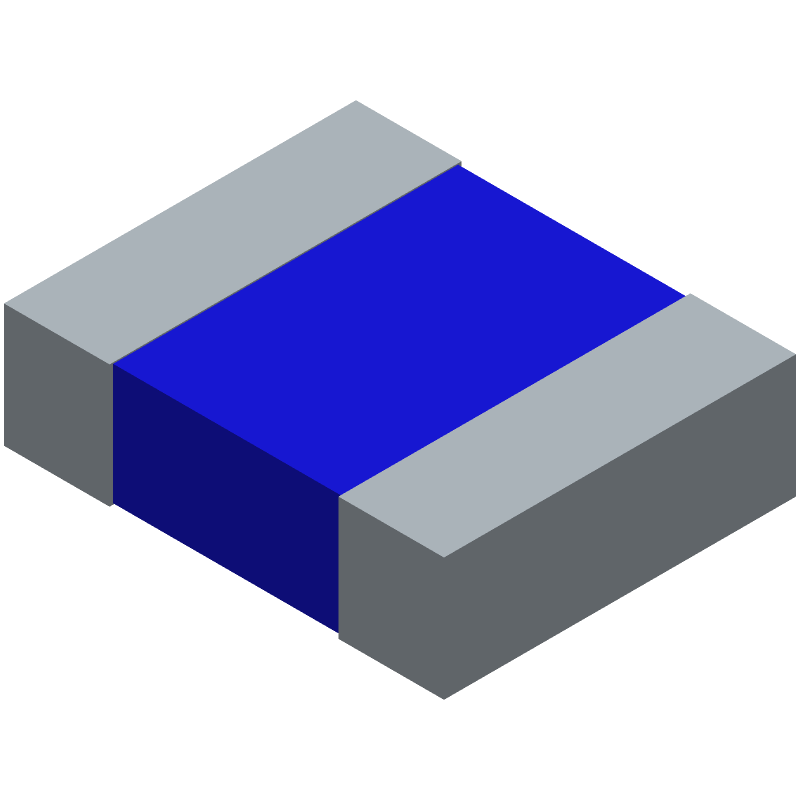

Inductor Power Shielded Wirewound 1uH 20% 1MHz Metal 2.1A 0.085Ohm DCR 1008 T/R
Quick Jump:
Technical Specifications
Murata DFE252007F-1R0M=P2 technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Tolerance | 20 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 1 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | YES |
| DC Resistance | 0.085 |
| Rated Current-Max | 2.1 |
| Test Frequency | 1 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata DFE252007F-1R0M=P2 Datasheet
Download the complete datasheet for Murata DFE252007F-1R0M=P2 to view detailed technical specifications.
No datasheet is available for this part.
