Dual 51µH common mode choke for power and signal lines, featuring a 1812 (4532 metric) SMD package. Rated for 230mA DC current with a maximum operating temperature of 125°C and a minimum of -40°C. Offers 1Ω DC resistance and 50V DC rated voltage. AEC-Q200 qualified and RoHS compliant, this unshielded component is supplied on tape and reel.
Package1812
Current230mA
Current Rating230mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata DLW43SH510XK2L technical specifications.
General
Case Code (Imperial)
1812
Case Code (Metric)
4532
Package/Case
1812
Current
230mA
Current Rating
230mA
DC Current
230mA
DC Resistance (DCR)
1R
Depth
3.4mm
Height
2.6mm
Inductance
51uH
Lead Free
Lead Free
Length
4.5mm
Max Current Rating
230mA
Max DC Current
230mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Lines
2
Package Quantity
1
Packaging
Tape and Reel
Ratings
AEC-Q200
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DLW43S
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
50%
DC Rated Voltage
50V
Weight
0.005997oz
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Murata DLW43SH510XK2L Datasheet
Download the complete datasheet for Murata DLW43SH510XK2L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

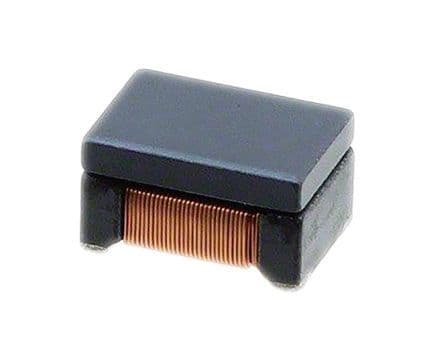

Product Images
