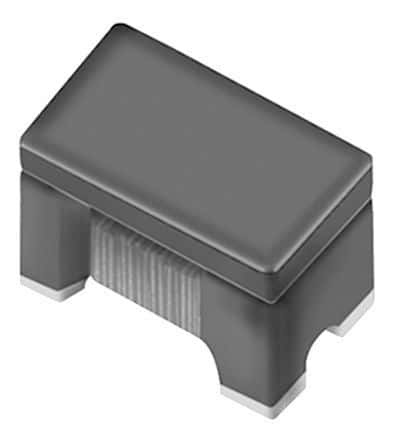

The DXW21BN7511TL is a surface mount RF transformer from Murata with a 0805 package and 75R impedance. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The transformer is lead free and features a turns ratio of 1:1. It is available in tape and reel packaging with a single unit per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DXW21BN7511TL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.2mm |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Primary Impedance | 75R |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Secondary Impedance | 75R |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 1.2mm |
| RoHS | Compliant |
