100µF, 6.3V polarized aluminum electrolytic capacitor with 20% tolerance. Features 15mΩ ESR and 63µA leakage current. Surface mountable in a 2917 (7343 metric) case code, with a maximum operating temperature of 105°C. This component offers 2A ripple current and is halogen-free and RoHS compliant.
Package2917
Capacitance100uF
Resistance0.015R
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Murata ECASD40J107M015K00 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
15mR
Height
1.9mm
Height - Seated (Max)
0.075inch
Lead Free
Lead Free
Leakage Current
63uA
Length
7.3mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
0.015R
Ripple Current
2A
RoHS Compliant
Yes
Series
ECAS
Termination
SMD/SMT
Thickness
1.9mm
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Murata ECASD40J107M015K00 Datasheet
Download the complete datasheet for Murata ECASD40J107M015K00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

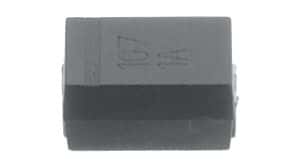

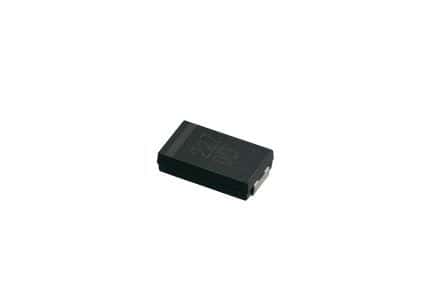

Product Images
