10µF, 16V polarized aluminum electrolytic capacitor for surface mount applications. Features a 2917 (7343 metric) case code, 60mΩ ESR, and a ripple current rating of 1A. Operates across a -40°C to 105°C temperature range. This component is halogen-free and RoHS compliant.
Package2917
Capacitance10uF
Resistance0.06R
Voltage Rating16V
Quick Jump:
Technical Specifications
Murata ECASD41C106M060K00 technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| ESR (Equivalent Series Resistance) | 60mR |
| Height | 1.9mm |
| Height - Seated (Max) | 0.075inch |
| Lead Free | Lead Free |
| Length | 7.3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 0.06R |
| Ripple Current | 1A |
| RoHS Compliant | Yes |
| Series | ECAS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 0.169inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata ECASD41C106M060K00 Datasheet
Download the complete datasheet for Murata ECASD41C106M060K00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

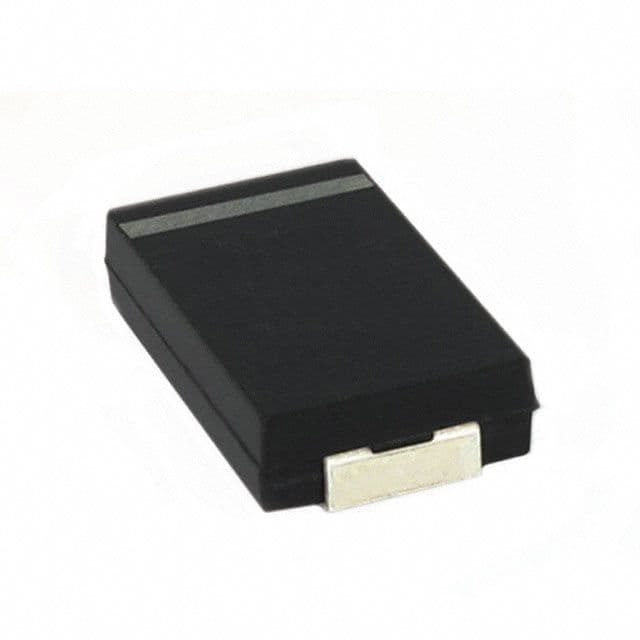

Product Images
