Multilayer Ceramic Capacitor (MLCC) with 10nF capacitance and 100V DC rated voltage. Features X7R dielectric material, 10% tolerance, and a 0603 (1608 metric) SMD package. Designed with soft termination for enhanced reliability and rated for operation from -55°C to 125°C. AEC-Q200 qualified and RoHS compliant, supplied on tape and reel.
Package0603
Capacitance10nF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GCJ188R72A103KA01D technical specifications.
General
Capacitance
10nF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Features
Soft Termination
Lead Free
Lead Free
Length
0.063inch
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ratings
AEC-Q200
RoHS Compliant
Yes
Series
GCJ
Termination
SMD/SMT
Thickness
0.031inch
Tolerance
10%
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Murata GCJ188R72A103KA01D Datasheet
Download the complete datasheet for Murata GCJ188R72A103KA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

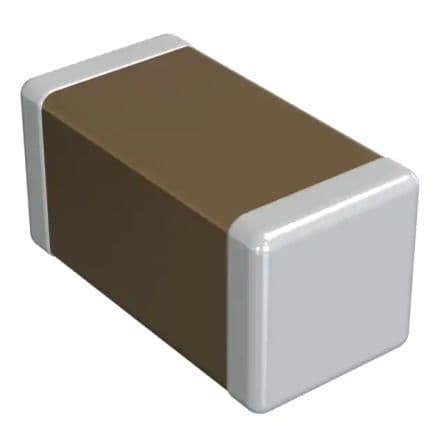

Product Images
