Package0201
Capacitance1.5pF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GJM0335C1E1R5WB01D technical specifications.
General
Capacitance
1.5pF
Case Code (Imperial)
0201
Case Code (Metric)
0603
Package/Case
0201
Construction
Flat
Depth
0.3mm
Dielectric
C0G
Height
0.3mm
Length
0.024inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
15000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
GJM
Termination
SMD/SMT
Thickness
0.013inch
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.012inch
Compliance
RoHS
Compliant
Datasheet
Murata GJM0335C1E1R5WB01D Datasheet
Download the complete datasheet for Murata GJM0335C1E1R5WB01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

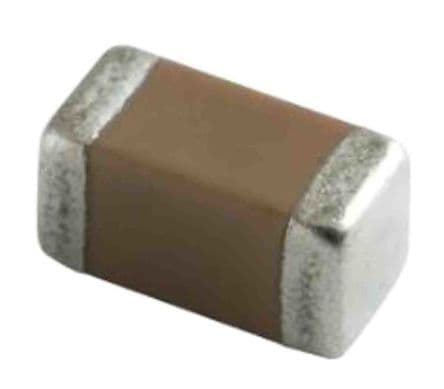

Product Images
