Multilayer Ceramic Capacitor (MLCC) with 0.5pF capacitance and 25V voltage rating. Features C0G dielectric for excellent stability across temperature, operating from -55°C to 125°C. Surface mountable in a 0201 (0603 metric) case code, this component offers low ESR and lead-free, RoHS-compliant construction. Packaged on tape and reel for automated assembly.
Package0201
Capacitance0.5pF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GJM0335C1ER50WB01D technical specifications.
General
Capacitance
0.5pF
Case Code (Imperial)
0201
Case Code (Metric)
0603
Package/Case
0201
Construction
Flat
Depth
0.3mm
Dielectric
C0G
Height
0.3mm
Lead Free
Lead Free
Length
0.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
GJM
Termination
SMD/SMT
Thickness
0.013inch
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.012inch
Compliance
RoHS
Compliant
Datasheet
Murata GJM0335C1ER50WB01D Datasheet
Download the complete datasheet for Murata GJM0335C1ER50WB01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

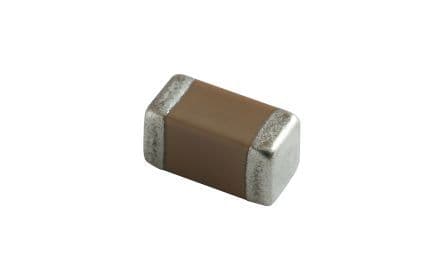

Product Images
