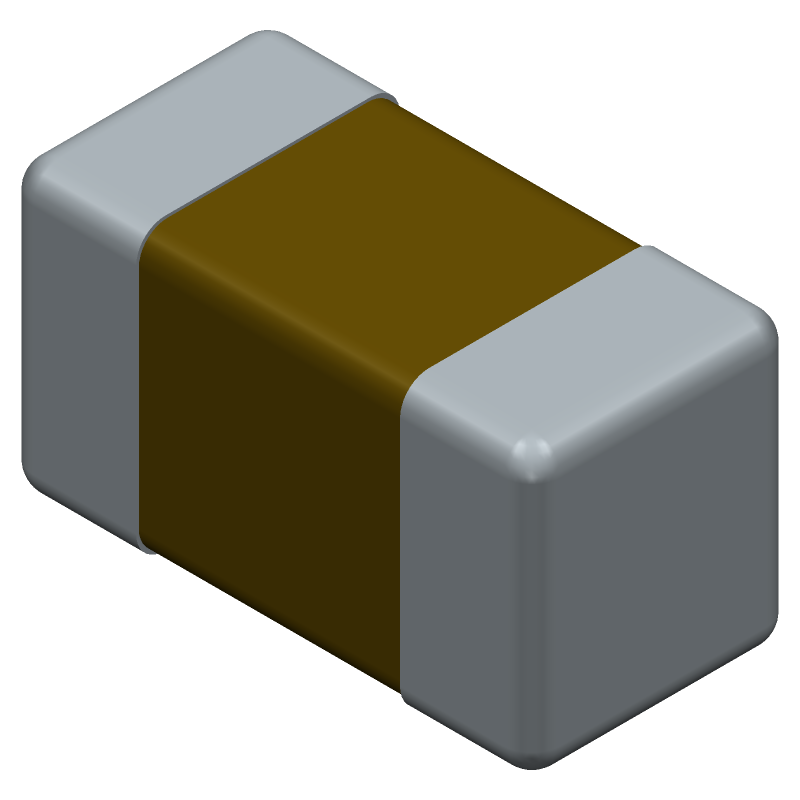

The Murata GJM1555C1H180JB01J is a multilayer ceramic capacitor with a capacitance of 180pF and a voltage rating of 50V. It has a tolerance of 5% and is packaged in a 0402 case. The capacitor is constructed with a C0G dielectric and is suitable for surface mount applications. It has an operating temperature range of -55°C to 125°C and is RoHS compliant.
Package0402
Capacitance180pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GJM1555C1H180JB01J technical specifications.
General
| Capacitance | 180pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | C0G |
| Height | 0.5mm |
| Length | 1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 50000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | GJM |
| Termination | SMD/SMT |
| Thickness | 500um |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
